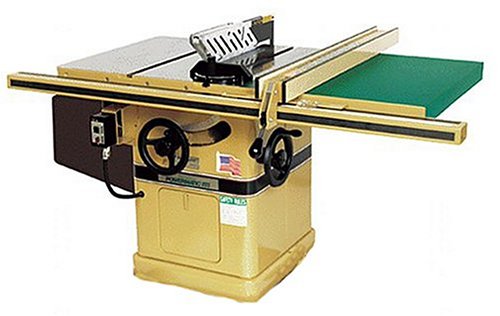

Powermatic 1660802K Model 66 Special Edition 10-Inch Left Tilt 3 Horsepower Cabinet Saw with 30-Inch Accu-Fence, 1 Cast Iron Extension Wing, and Table Board, 230-Volt 1 Phase

by Powermatic

$3,400.00
buy from amazon.com
Average Rating: * * * * *
Sales Rank:58394 (lower is better)
Shipping:Free Shipping on most orders over $25*
Availability:
Label:Powermatic
UPC:416840000689
Binding:Tools & Hardware
Published By:Powermatic
ASIN:B0000225R0
Category:Home Improvement

Powermatic 1660802K Model 66 Special Edition 10-Inch Left Tilt 3 Horsepower Cabinet Saw with 30-Inch Accu-Fence, 1 Cast Iron Extension Wing, and Table Board, 230-Volt 1 Phase Features

  • 10-inch left-tilt cabinet saw with 30-inch fence, extension wing, and table board; 15 amps
  • Features award-winning Accu-Fence, with only 2 moving parts for easy-gliding, precision work
  • Constructed with heavy-duty cast-iron
  • Includes saw, rail assembly, extension wing, and table board, Accu-Sense fence assembly
  • 28 by 53-3/4-inch table surface; 34 by 53-1/4 by 32 inches total; 500 pounds; 1-year warranty

Editorial Reviews and Product Descriptions

Product Description

Arbor Diameter (in.) 5/8 Blade Diameter (in.) 10 Brand Powermatic Distance Between Sliding Table and Blade (in.) n.a. Dust Collection Adapter Port 4" dia. Dust Collection Minimum CFM Required 350 Dust Port Diameter (OD/in.) 4 Height 34 inch Leg Stand with Steel Storage n.a. Length 53 inch Maximum Cross Cut (in.) n.a. Maximum Depth of Cut (in.) 3-1/8 Maximum Depth of Cut at 45 Degrees (in.) 2-1/8 Maximum Diameter of Dado (in.) 8 Maximum Rip Left of Blade (in.) 12 Maximum Rip Right of Blade (in.) 50 Maximum Width of Dado (in.) 13/16 Miter Gauge Type standard Model Number 66 Motor Amps 15 Motor HP 3HP Motor Phase 1Ph Motor Voltage 230V Net Weight 455 pound Overall Dimensions 73-3/4 x 32 x 34 Part Number 1660802K Prewired n.a. Rapid Wing Extension n.a. Ship Weight 510 pound Table Height (in.) 34 Table in Front of Saw Blade at Maximum Depth of Cut (in.) 12 Table Size with Standard Extension (L x W/in.) 28 x 37-1/2 Table Size without Extension (L x W/in.) 28 x 21-1/2 Table Size without Wings (L x W/in.) 28 x 21-1/2 Table Type cast iron Width 32 inch
Amazon.com Review

If you've always wanted to own Powermatic's model 66 table saw, but you've held off because of the space it demands, then take a close look at Powermatic's Special Edition 66, built with the home workshop in mind. This is a piece of shop equipment that makes a toolhound's heart beat faster. The eye-catching high-grade cast-iron top is machine-polished to a mirror finish. The saw's table--impressively thick and durable--has both a cast-iron wing extension and a laminated extension (total surface: 28 by 53-3/4 inches). With one of the heaviest cast-iron trunnions on any 10-inch saw on the market, the model 66 virtually snuffs out vibration. The double drive-belt system--hooked up to the burly 3-horsepower motor--delivers pretty astonishing power. A C-flange mount takes the weight of the motor, so the blade cranks up or down easily without the extra weight. The saw's hand wheels are also made of cast iron and have excellent clearance.

The heart of any table saw, arguably, is the fence--and Powermatic's Special Edition 66 sports the award-winning Accu-Fence, a system that uses only two moving parts to create easy-gliding, precision, no-budge fence action. The left-tilting blade tilts away from the fence, which helps prevent kickback and binding of the stock, making for smoother cuts. The two-sided blade guards work independently of each other, so the blade is always covered. The guards also swing totally out of the way to make blade changes easy. Behind the blade, there are antikickback pawls for added safety. The saw's base has a clean-out door, allowing you easy access to the saw body and making cleanup a snap--no reaching around the saw components or having to remove the motor cover. You'll also receive a load of extras, including a dado insert, a motor cover, and an extension table and legs. Admittedly, this isn't a cheap saw; without a doubt, however, it is an excellent one that would make a great addition to any shop. As with almost everything, you get what you pay for--in the case of Powermatic's Special Edition 66, you get a fantastic piece of equipment your friends will envy. --Jon Groebner

Customer Reviews

You need fine tools to build fine furniture.... - Reviewed on 2005-04-28
* * * * *
9 customers found this review helpful, 3 did not.

and this is a fine tool. I have owned two 66's over the years and have yet to have a complaint. Thank goodness they are still being made. They are heavy,which makes them very stable, (be sure to have a lift truck deliver it). But, if you want to do accurate and fine woodworking you need this saw.
Some assembly required - Reviewed on 2004-12-27
* * * *
24 customers found this review helpful, 2 did not.

I have been wanting a Powermatic 66 for over 25 years but until now had to make do with a much cheaper table saw sold by a popular chain store/catalog outfit. That saw did the job, but shook like Elvis Presley and could not be properly adjusted. Well, I have my Powermatic now, and I'm very pleased, but putting it together has been frustrating. Buyers should be aware that they are really buying a "kit" - not only is some assembly required, but some correction of manufacturing faults may be needed. The first (and biggest) problem I encountered was that the left extension wing tilted up when bolted to the table, leaving a low spot of 0.02 inch when a Starrett straight edge was laid across the assembled table. Not good! The cause was that the left edge of the main table section was not ground square with the top. Correcting this bit of sloppiness required three hours of hand fitting with a machinist's scraper and square. The second principal difficulty was discovered after frustrating hour trying to mount the front rail according to instructions. I finally realized that it could not be done because of inadequate clearance in the mounting holes. Drilling and filing fixed this. The third problem had me baffled for awhile: With the blade tilt stops set accurately at 0 and 45 degrees, the pointer could be set to register correctly at 0 or 45, but not both! After some thought, I realized that the scale had been mounted too close to the pointer. This was corrected by drilling a new mounting hole for one of the screws.

After three days of work, the saw is finally up and running. It's been too much work, but I'm going to love this saw. On the plus side, I did not have to adjust the table to put the blade parallel with the miter gauge groove. Also, vibration is minimal. I can start the saw with a nickel balanced on edge (but not a penny). Most importantly, the trunions are pretty much dead on. Measuring from the same tooth to the miter gauge grove, the distance varies no more than 0.004 inch between front and back (blade all the way up) and middle (blade down). Also, using a Starrett machinist's square, perpendicularity between blade and miter gauge shows no perceptible change as the blade is raised or lowered. These tolerances are critical because poor machining could have created errors that cannot be adjusted out (as I had with my old saw). Now that the saw is together, my only remaining complaint is that there is a low frequency (2-3 second) harmonic noise of undetermined origin. I'm sure this is the best saw available for the money, but I would have gladly spent another $100-200 for just a little extra care in machining and assembly.
Top notch -- worth the expense - Reviewed on 2004-09-15
* * * * *
15 customers found this review helpful, 1 did not.

I ordered the saw a few weeks ago on Amazon. Delivery took a while, as the freight company had to lug it across the country. Finally scheduled the delivery -- freight company was very easy to deal with and put it on a liftgate truck with no hassles. You'll want this service, by the way -- unless you happen to have a forklift in your garage.

No surprise - The pallet is *heavy*. Took about an hour to uncrate and take off all the easy-to-remove weight. That leaves about 400 pounds. Tip: if you have to move it far (such as I did, down to a basement workshop), rent a handtruck like those used for moving refrigerators. With the handtruck and three guys, it was an easy move.

Pretty much everything was dead-on accurate out of the box. Once hooked up to power (remember you have to supply your own power cord), it cuts smoothly and cleanly. The trunion moves incredibly easily, especially considering its weight -- but doesn't budge once locked in place.

All in all, it was worth the wait (and the weight)! Highly recommended.
Taiwan On or Taiwan Off - Reviewed on 2004-09-01
* * * * *
20 customers found this review helpful, 3 did not.

Don't fear the Taiwan made machines. I just got the Powermatic 719A Mortiser, which is made in Taiwan, and I just received the 60B jointer as well, and they were superb right out of the box. Considering the condition of the Model 66 table saw I just received, I have to be a bit concerned, which is not made in Taiwan if you get my drift. It had 7 major problems with it. They were correctable, because it wasn't design problems, it was assembly problems. Obviously it was built by someone, or some many who didn't really care about what they we're doing. Total disregard would be an accurate comment. The top plate that is welded to the base, was not aligned before it was welded. Consequently I had to remove the cast iron top, and drill out the slots in the sheet metal. (You'll notice many other reviews with the same problem) It was the only way I could get an accurate alignment with the blade. The 90 and 45 degree stop settings were checked off on the quality control spec sheet, and signed, and they weren't even close. Decals installed way off, the bevel gauge was drilled and installed so far off that the readings are as much as 5 degrees off. I will have to redrill and reinstall it. The insert surrounding the blade refused to lay flush with the top, even though it had 4 adjustable allen bolts. I had to use a rubber hammer on a bench for a while to get it straightened out. All that being said, I must admit, after spending hours getting the saw perfect, it is the most beautiful and accurate tool you could ever hope to own. I treat it like a waxed Ferrari, it is that beautiful. Also both Powermatic factory reps and Amazon Tool Crib customer service are the best in the industry. They really stand behind the product. Don't misunderstand me, if I had to do it all over again, I would buy another one in a heartbeat. It really is the best out there. That being said,
I'm now a PMatic made in Taiwan fan; Combining the dollar conversion rate, and the cost of living, with Taiwanese products experiencing a strong uplift in quality, and Powermatics insistence that they are made to their specifications, all adds up to a jointer that used to cost 1800 dollars, and now costing 1100 and hasn't lost its edge on quality. I'm sorry but I am disappointed in the obvious disdain the workers here had while building what is the best in the industry table saw.
A lot of people are buying the old made in America Powermatic machines, a lot of people are buying the new Powermatic made in Taiwan machines and I agree with both of them. To tell you the truth I don't care where they make it, I'm in love with the industrial grade quality of Powermatic equipment.
This 60B jointer is one superbly engineered and precision built piece of equipment. Even though their were a few MINOR anomalies when I first received it, it's perfect now. I love all of my Powermatic equipment, and I hope that the crews at home shed the anger and once again get back to making the very best products in the world. Highly recommended.
The best I have ever used. - Reviewed on 2003-10-19
* * * * *
8 customers found this review helpful, 4 did not.

The Powermatic 66 (3hp) has been in my shop since 1984. It has ripped, crosscut, mitered, dadoed, molded, mortise-tenoned, styled-railed, worked wide materials and very small items all to perfection. In my book, this is with out a doubt the saw of choice! It has never failed to respond to a request that I have made of my Mr. 66.

The saw is equipped with a Beismeyer fence, as I tell my freinds, if you want to remove 128th of an inch of material bring it to Mr. 66, set it and cut it. The tables show the quality story, smooth and polished.

As you can see, I respect this tools because of the capacity and performance it produces. Mr. 66 is truily a joy to work with. It runs several hours a day which causes, because of the hard we work, to go through the edge of quality blades about every two weeks, then off to the sharpening shop. Buy it, use it and enjoy it, as I have. Charles D. Wallin
